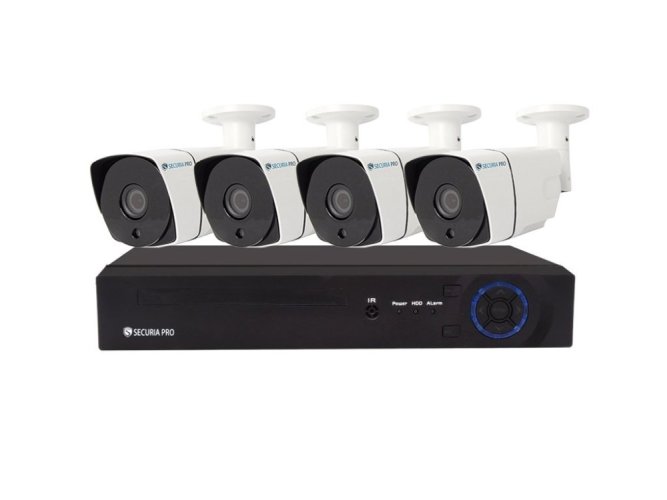

Securia Pro NVR4CHV8-W IP camera set, 8Mpx, 4 cameras, PoE NVR, white, after option

The item has unpacked packaging and is beyond repair. For this reason a discount is given. The product is fully functional and with full warranty.

You can connect the Securia Pro NVR4CHV8-B 4-channel system 4 IP cameras at the same time . To view the video from the cameras, you can use PC monitor or TV.

Use the app to view the video on a PC or mobile. In this case, however, the camera system must be connected to the Internet network using a network cable. The set includes 4 waterproof cameras with night vision.

8 MPx resolution

Higher resolution brings a sharper image which provides more detail. High resolutions require more storage for storage of the camera footage. The most common IP solutions range from 1 Mpx (1280 x 720) to 5.0 Mpx (2592 x 1944). Securia Pro NVR8CHV8-B offers resolutions up to 4K.

Securia IP cameras

IP cameras use a conventional computer network to transmit the signal, where the more bandwidth is available to transmit information and the cameras are not as limited as with analogue technologies. The cameras connect to NVR box or to the network using an RJ45 cable. This technology is newer and slightly more expensive than analogue.

Waterproof IP cameras

The cameras are suitable for outdoor and indoor use and meet the IP66 standard, so they can be used safely in all weather conditions.

Night vision

All Securia Pro cameras are equipped with night vision vision. The cameras will not move in low light conditions automatically switch to night vision mode.

Motion detection

The system is also equipped with a useful motion detection function. If motion is detected, the system automatically sends a message to selected devices.

Certificate of conformity

The Securia Pro camera system has received a Slovak certificate of conformity. This certificate confirms that the product meets the basic requirements for safety according to EC/EU directives.

Menu in Slovak language

Securia Pro camera sets have the entire menu in Czech and Slovak and Hungarian languages.

Online viewing of footage via the Internet

All Securia Pro camera systems allow online video transmission via XMEye app on mobile devices such as mobile phones and Android and IOS tablets. Preview and control is also possible of the system on personal computers, either via the installed software or via a web browser.

Easy connection

Installation of the Securia Pro camera system is very simple. Wiring is similar to connecting a home DVD player to a TV set.

Main advantages

• Night vision
• Online image preview on mobile devices or PC
• Motion detection
• Camera resolution up to 8 MP
• Supports HDMI output up to 4K
• Supports H.265 formatting
• Compatible with up to 6 TB hard drive
• Backup footage to USB
• Supports various network services (DHCP, FTP, DNS, DDNS, NTP, UPnP, EMAIL, 3G, WIFI, IP searches, Alarm Center, etc.)
• Czech menu

Specifications

Recording device

• Main processor: integrated microprocessor of technical quality HI3978M
• Operating system: integrated LINUX operating system
• System source: real-time synchronous multi-channel recording, real-time multichannel playback, multichannel operation more USB backup.
• 16-bit real GUI operating interface Supports mouse control
• Display screen: 1/4 screen (take analog as an example channel, others based on the selected channel mode)
• Video standard: PAL/NTSC
• Video Encoding: H.265 (high profile); JPEG
• Monitor quality Monitor: D1; VGA, HDMI: high definition (1080P)
• Playback quality: 4K/1080P
• Encoding capability: 4*4K
• Decoding capability: 1*4M
• Multi-mode video input NVR: 4*4K
• Motion detection: each channel can be set 192 (16*12) areas detection; multi-level flexibility can be set (for local analog only channel)
• Audio compression: G711
• Two-way call: No
• Recording mode: manual > alarm > motion detection > timing
• Local playback: synchronized 1-4 channel playback (e.g. local analog input, others depend on the selected mode channel)
• Video searches: time, date, event, channel search
• Space occupancy - video: CIF 4~5G/day*channel, D1 16~20G/day *channel, audio 691.2M/day *channel
• Video storage: local HDD, Network
• Backup modes: network backup, Portable HDD, USB imprint, SATA imprint
• Video Input: 4CH LAN (1.0Vp-p, 75ohm)
• Video Output: 1CH VGA, 1CH HDMI
• Audio Input: No
• Audio Out: 1CH VGA, 1CH HDMI
• Alarm Input: No
• Alarm Output: No
• RJ45 10M/100M self-adaptive Ethernet port
• PTZ control: No
• USB port: 2x USB2.0
• HDD port: 1 SATA port (each up to 8 TB max)
• Wireless port: No
• Power supply: 48 V / 3 A
• Power Consumption: < 15 W (without HDD)
• Temperature: 0 °C - +55 °C
• Humidity: 10% - 90%

IP camera

• Focal length: 2.8 mm 8.0 MP HD lens
• System Structure: Integrated RTOS, dual-core 32-bit DSP (Hi3516D), pure hard compression, watchdog
• Sensor: 8.0mm 1/2.7" Sony CMOS SC8238 sensor, 0.1Lux color @ F1.2, 0.01Lux black and white @ F1.2
• Video compression: H.265/H.264, dual stream support, AVI; 0.1M variable ~10 Mbps; variable 1~30 f/s
• Image output: main stream 8MP 4096 x 2160 @ 25 fps;
• Shutter speed: 1/50 (1/60) sec to 1/10,000 sec
• LEDs: 36 pcs IR ice
• Day and night mode: support IR-CUT
• Noise Reduction: support 2D/3D WDR
• Auto Aperture: No
• Audio compression: G.711, two-way call support, synchronization audio and video
• Audio Interface: 1 channel input, 2Vp-p level, 1k ohm impedance, support audio capture input; 1-channel output, 16? impedance, 30 mW support microphone
• Network interface: 1x RJ45 10/100M adaptive Ethernet port; support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP etc.
• Expansion interface: 1*USB, WIFI/3G support, SD support; 1ch alarm output; reset key; 1channel alarm input or LED panel; RTC battery
• Singal interface: one photo support interface, one IR-CUT interface, support for photoresist signal and IR-CUT to IR links
• PTZ: No
• Alarm I/O: 1/0 (support alarm input and background video link)
• WIFI interface: No
• Interface Reset: No
• SD Card: No
• Reliability: Comprehensive lightning protection, 7*24 hours 65°C high temperature stable and reliable testing
• Intelligence analysis: alarm line, alarm region, stranded goods, video block, fuzzy detection, scene change
• Other functions: WEB support, OSD, live video transmission, motion detection and IO alarm, front-end storage/playback/download and hubs image recall and linking, JPEG capture support; unified remote client monitoring couches, MYEYE; perfect SDK;
• ONVIF: supported
• Mobile monitoring: support multiple mobile monitoring (iOS, Android)
• Power input: DC 12V/2A, power consumption: 3W
• POE: IEEE 802.3af / 3AT
• Waterproof: Yes, IP66
• Material: metal camera housing

Package contents

1. 1 x Black 4 channel NVR video recorder
2. 4 x white IP POE camera
3. 4 x 20m network cable
4. 1 x Power supply
5. 1 x USB mouse
6. 4 x Fixing kit (screws, raw plugs)
