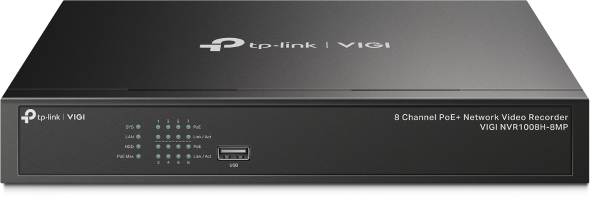

TP-Link VIGI NVR1008H-8MP 8 channels, 8x Lan with PoE, 2x USB

The TP-Link VIGI NVR1008H-8MP with 4K HDMI video output records videos from security cameras and makes them easy to manage. It will provide you with high resolution video up to 8MP. Keep an eye on what's happening on your property or in your business (shop, warehouse, restaurant, guesthouse). The 8-channel display shows you footage from 8 cameras at once. So you won't miss a detail.

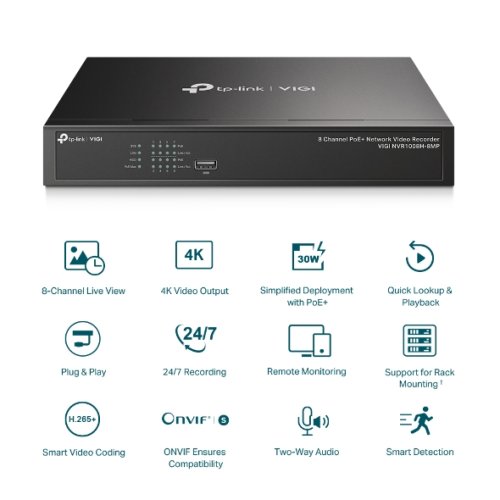

Main advantages

• 4K HDMI output and up to 8MP resolution for high quality images
• Connect up to 8 cameras at once
• Compatible with cameras of different brands
• High total PoE power of up to 113W
• Large storage space - 10 TB
• Easy management and remote monitoring capability
• Clear and crisp video thanks to H.265+ compression
• Built-in intercom for two-way voice communication
• Wall or under-desk mountable

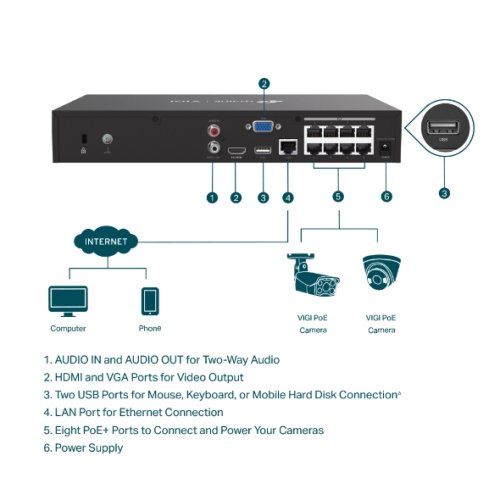

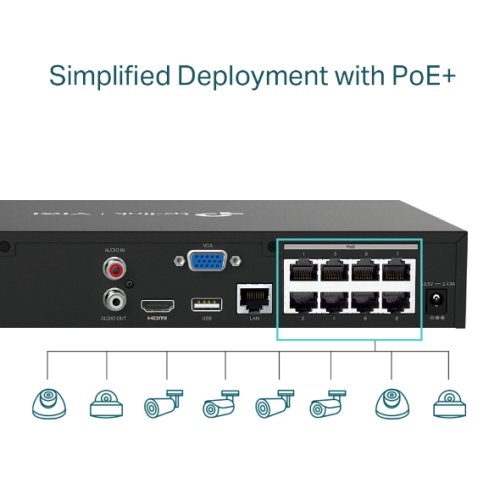

PoE ports for data transmission and power

You will find four 10/100 Mbps PoE+ ports on the recording device. Each has a power rating of 30 W. The total PoE power of the switch reaches 113 W. It transfers both data and power using a single Ethernet cable. So you don't need any additional power adapter.

Continuous operation and remote management

The TP-Link device can store up to 10 TB of data from connected security cameras. So you can record continuously 24 hours a day, 7 days a week. All recordings can be accessed quickly and easily. You can even secure your property while you're on vacation. You can remotely track and monitor everything that happens in your business via the VIGI app, web user interface and VIGI Security Manager.

Compression for high image quality

Your camera transmits crystal clear video thanks to H.265+ compression. It does not use additional bandwidth during transmission and saves disk space. So with a TP-Link recording device, you can ensure high image quality without putting more strain on your network.

Barrier-free compatibility

With TP-Link VIGI, you can create a diverse network. The proven ONVIF standard allows security cameras to communicate with the recording device. Easily connect IP cameras from VIGI and other brands. Thanks to Plug & Play technology, installation is fast. They are activated immediately when plugged in.

Two-way conversation

Is the postman or a guest standing at the door? The TP-Link device has a built-in voice intercom. You can start a two-way conversation. Invite newcomers into the building or ask them what they need or who they are looking for.

Easy installation

Find a suitable location for the TP-Link VIGI recording device. Mount it in the your NVR rack or place it on a table (or under your desk). However, mounting accessories are not included.

Specifications

• Brand.
• Model.
• Purpose: recording device
• Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
• Input Bandwidth: 80 Mbps
• Output bandwidth: 60 Mbps

Video and image

• Video input: 8-channel IP video input, up to 8 MP resolution
• Recording resolution: 8MP/5MP/4MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

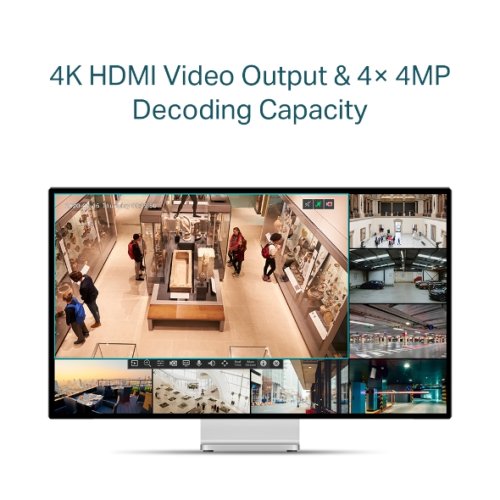

• HDMI output resolution: 1 channel, resolution - 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
• VGA output resolution: 1 channel, resolution - 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Decoding

• Decoding format: H.265+/H.265/ H.264+/H.264
• Resolution - Live Preview and Playback: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
  DCIF/2CIF/CIF/QCIF
• Synchronous playback: 8 channels
• Capacity: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Hard disk

• SATA: 1 SATA interface
• Capacity: up to 10 TB

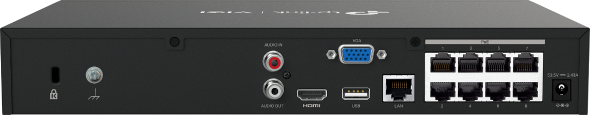

Interface

• Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet interface
• USB Interface: 2x USB 2.0

Power

• External Power Supply: 53.5V DC/2.43A
• Power consumption: 4.82 W (without disk)

Physical parameters

• Color: Black
• Operating temperature: -10 - 55 °C
• Dimensions (w x d x h): 294 × 180 × 44 mm

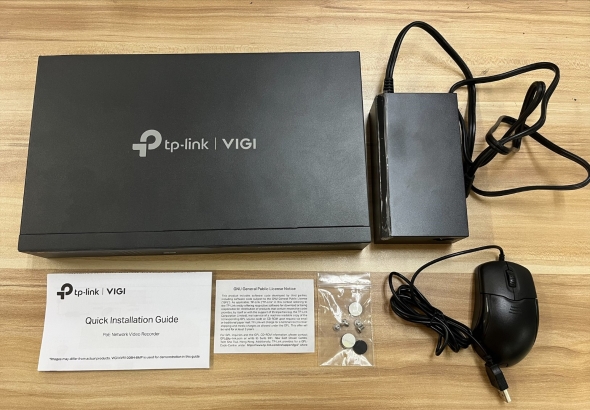

Package contents

1. 1x VIGI network video recorder
2. 1x power adapter
3. 1x set of HDD screws
4. 1x mouse
5. 1x quick installation guide
