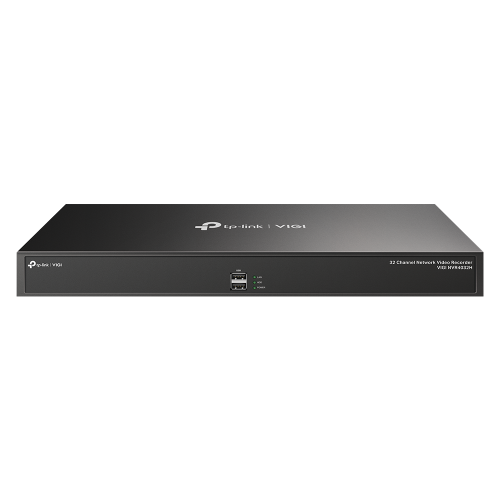

TP-Link VIGI NVR4032H 16/2MP, 8/4MP channels, 2x LAN, USB, VGA, HDMI

The TP-Link VIGI NVR4032H 32-channel network video recorder is used for continuous video recording 24 hours a day, 7 days a week. Your property, real estate and land will remain safe and monitored at all times. The device supports the VIGI mobile app, which is suitable for remote monitoring of events, for checking stored footage and for camera management.

Main advantages

• Continuous video recording
• Ideal for protecting your property
• ONVIF communication protocol for maximum compatibility
• Connection of a large number of cameras from different manufacturers
• VIGI mobile app support for remote management
• H.265+ video compression for clear images and less effort
• Wide connectivity
• Plug and Play for easy connection of additional cameras

Bandwidth and video compression

Offering a fantastic 320Mbit/s bandwidth, this NVR can handle multiple cameras with high quality recording. The compatible SATA hard drive can fit a total of 10TB of data from connected cameras. As the device supports the connection of up to 4 SATA drives, you can increase the storage up to a whopping 40TB with their help. You can simultaneously monitor footage from connected cameras. Smart H.265+ video encoding ensures crystal clear images, saves more disk space, and reduces the overall network load as well as the financial cost of operation.

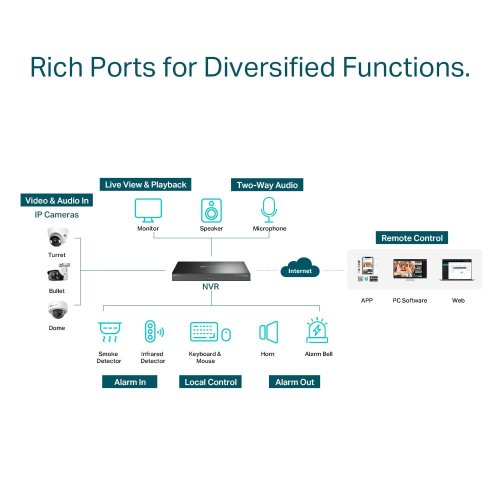

Rich interface

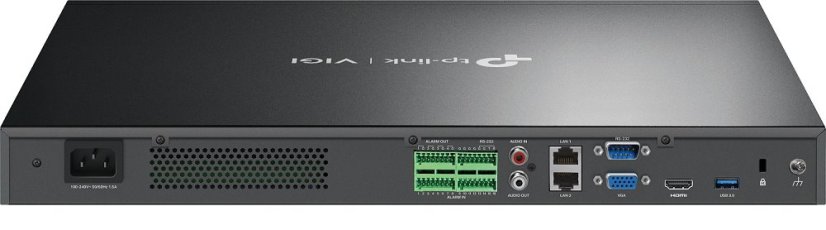

The recorder features HDMI and VGA ports for connecting a monitor or other display device, as well as audio input and output for two-way conversation. This feature comes in handy, for example, when unexpected visits or when picking up parcels from the hands of a courier. There are also connectors for Ethernet connectivity, which ensures a reliable wired connection for nonstop recording and monitoring of recordings.

ONVIF support

The TP-Link VIGI VCR supports the ONVIF protocol. Easily add IP cameras from VIGI and other brands to expand your options. You can install multiple types of cameras from a variety of manufacturers, so this recording unit is a completely versatile solution for any user.

Easy installation and rack mounting

Thanks to Plug and Play technology, you can easily add additional IP cameras to the recorder. They are automatically activated. Installation of new devices is therefore very quick and easy. In addition, you can place the TP-Link recorder in a rack with the included mounting kit.

Specifications

• Brand.
• Series.
• Model: NVR4032H
• Purpose: recording device for security cameras
• Protocol: UPnP (Plug and Play), NTP (Network Timing)
• Compatibility: ONVIF, CGI
• Mobile access: Android, iOS
• Browser: Chrome (57+), Firefox (52+), Edge (91+)
• Input Bandwidth: 320 Mbps
• Output bandwidth: 320 Mbps

Record playback

• Recording mode: manual recording, schedule recording, motion detection
• Playback mode: instant playback, normal, label playback, event
• Backup: normal backup, video clip backup
• Playback Functions: Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

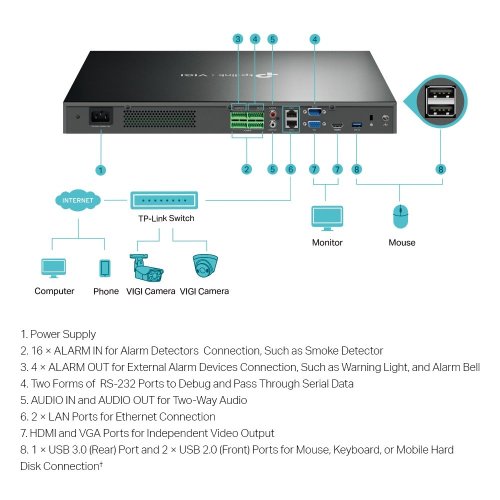

External Interface

• Network Interface: 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
• USB Interface.
• Audio Interface: Audio In, Audio Out
• Alarm In/Out: 16/4
• Serial Interface: RS232

Alarm

• Basic alarm: motion detection, video tampering, intrusion detection, boundary crossing detection
• Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
• Alarm Linking: Recording, White Ligh Alarm, Buzzer, Log Audible Alarm

Video and Image

• IP video input: 32 channels
• Multi-view display: 1/4/6/8/9/16/25/32/36

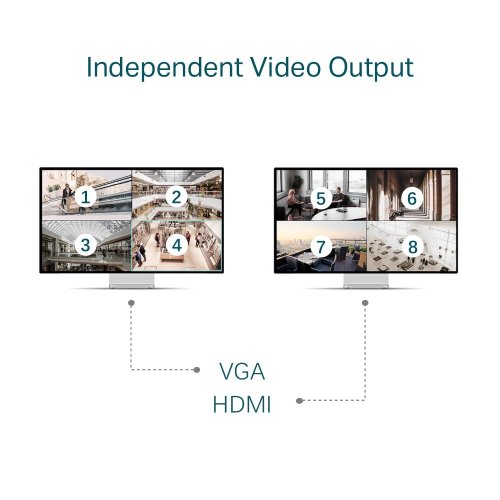

• Video Output: HDMI/VGA Independent Output
• Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
  2CIF/CIF/QCIF
• HDMI output resolution: 1 channel, resolution - 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x72
• VGA output resolution: 1 channel, resolution - 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
  1024x768/60Hz

Decoding

• Decoding format: H.265+/H265/H.264+/H.264
• Live Preview/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 16 channels
• Features: 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP
  (30 fps)

Power

• Power: 100 to 240 VAC, 50 to 60 Hz, 1.5A
• Power consumption: 5 W (without disc), 48 W (with disc)

Physical parameters

• SATA: 4 SATA interfaces
• Disk capacity: up to 10 TB per HDD
• Operating temperature: -10 to 55 °C
• Weight: 4 kg
• Dimensions (w x d x h): 440 x 330 x 44 mm

Package contents

1. 1x recording device
2. 1x power adapter, HDD power cables, HDD data cables, terminal blocks
3. 1x set of mounting brackets, screws and rubber feet
4. 1x mouse
5. 1x installation instructions
